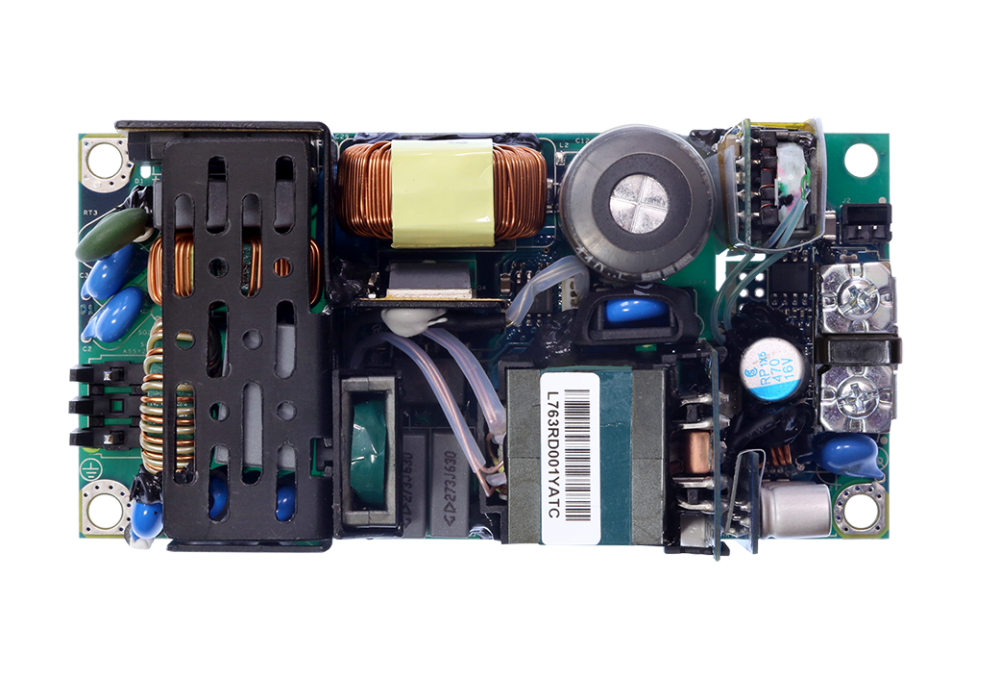

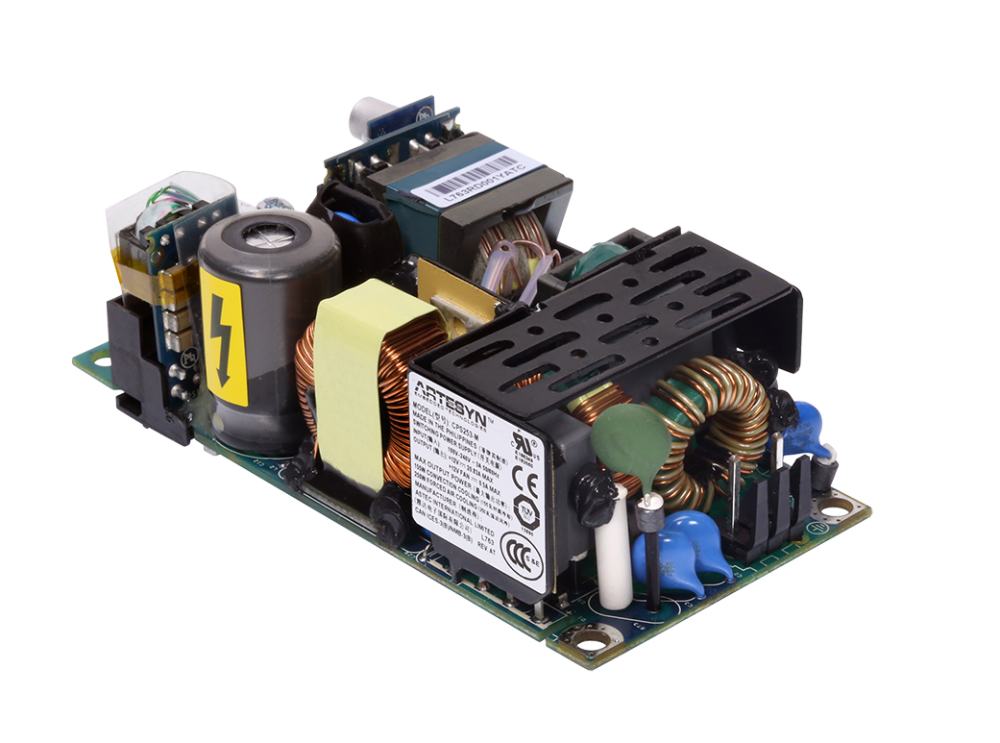

CPS250-M Series

The CPS250-M series of single output open-frame AC-DC power supplies are offered in 12 V, 24 V, or 48 V outputs with +10% Trim range. Each power supply comes with a 12 V fan output. All models feature ITE and medical safety approvals and accept a universal input of 90—264 Vac. Depending on operating conditions, its 2'' x 4'' x 1.29'' compact and high density design delivers up to 155 watts of output power with free air convection cooling and up to 250 watts with 300 LFM of forced air. These power supplies are ideal for light industrial systems as well as for medical applications.

CPS250-M Series Data Sheet

Есть вопросы? Задайте их нашему менеджеру!

+375 (17) 396-27-28

Оставить заявку

Характеристики

Характеристики
INPUT
OUTPUT
Описание
Отзывы (0)

Гарантия

3 years

Тип

AC-DC

Package Size

4.000 x 2.000 x 1.290

Input Voltage (V)

90 V to 264 V

Output Power

250 W

Main Output (Amps)

20.8 A

Main Output (Volts)

12 V to 52.8 V

Number of Outputs

Single

Temperature Rating

-20 to 70 °C

Frequency

47-63 Hz

Maximum Power

240 W Forced Air

Описание для товара CPS250-M Series отсутствует.
